Stairway Scaffold – 1400(W) × 2000(L) × 15.20(H) - Platform Height - 14.30m, Over All Height 15.30m, Reaching Height 16.30m
SKU: SCAF-SS-03
In Stock — Ready to Ship
₹342,355.00
/ set
Price per unit. Inclusive of all taxes & GST.
Quantity
set
article Product Specifications & Description

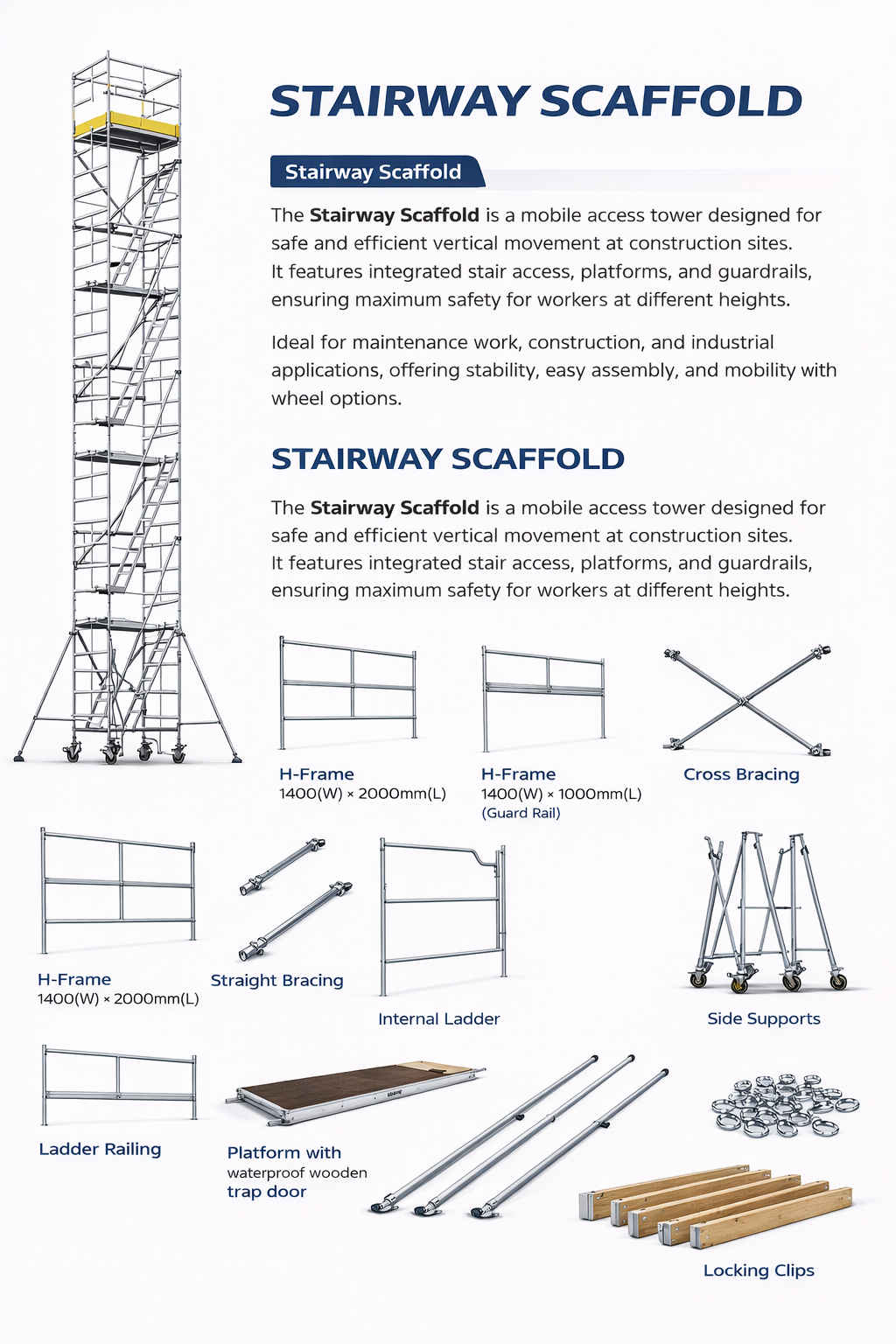

Verified Technical SpecificationsThe Stairway Scaffold is a mobile access tower designed to provide safe and efficient vertical movement at construction sites. It features integrated stair access, multiple platforms, and guardrails, ensuring maximum safety for workers at different heights.

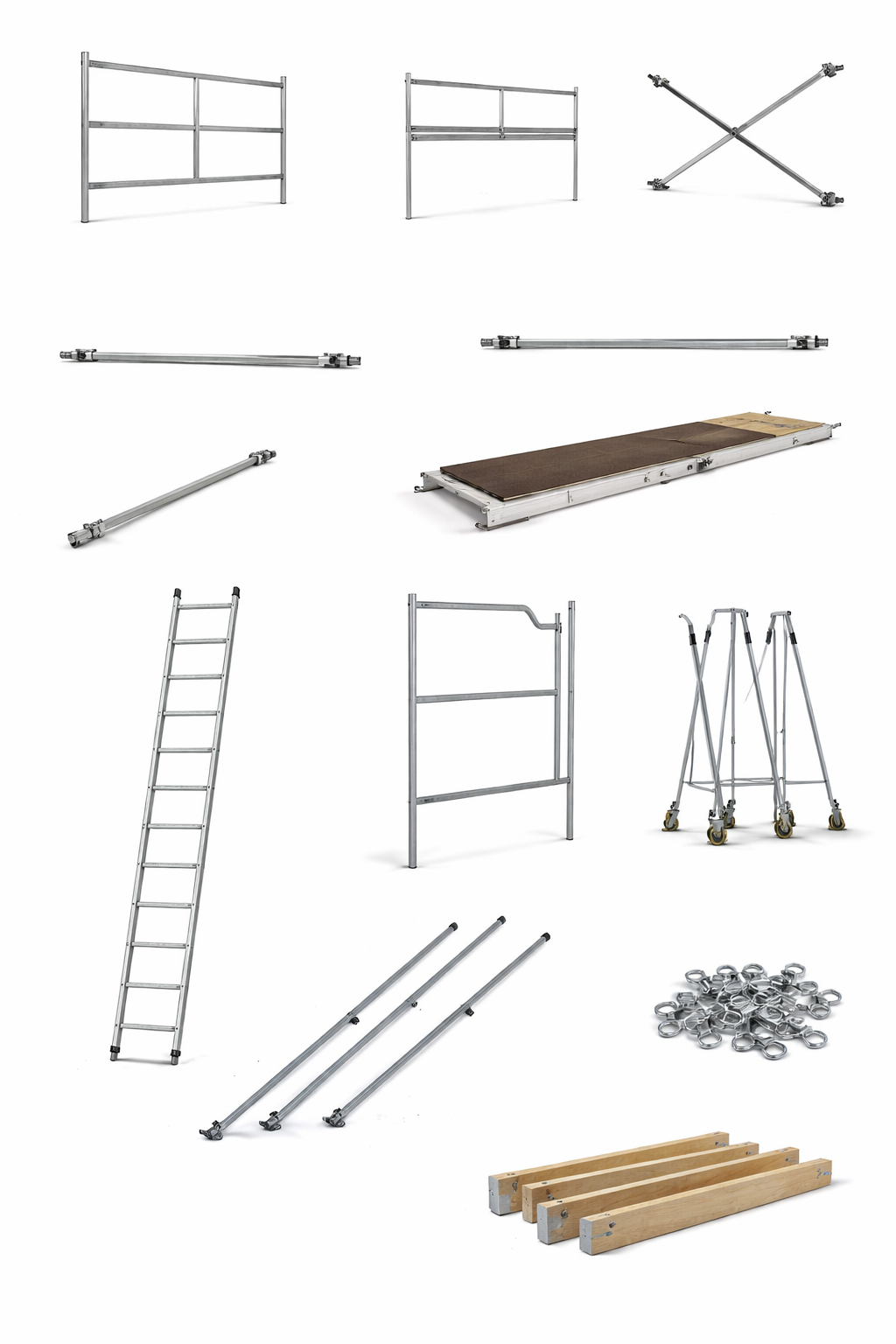

inventory_2 Bill of Material / Inclusions
- check H-frame 1400(W) x 2000mm(L) - 14 NOS
- check H-frame 1400(W) x 1000mm(L)(Guard Rail) - 02 NOS
- check Cross Bracing - 08 NOS
- check Straight Bracing - 08 NOS
- check Special Straight Bracing - 08 NOS
- check Plat Form with 10mm water proof wooden With Trap Door - 08 NOS
- check Internal Ladders - 07 NOS
- check Ladder Railing - 07 NOS
- check Side Supports 04 (6 metre)long 04 short (3.3ft) - 01 SET
- check Toe - guard (18mm wooden) - 01 SET
- check Locking Clips - 32 NOS
- check Wheels Option:
- check Adjustable jack wheel Trolley 8" wheels x04 NOS - cost
info Important Product Note
Note: This is a tall working-at-height scaffold configuration. It must be assembled, stabilized and used strictly according to the manufacturer's instructions and applicable scaffolding safety requirements. Ensure the supporting surface is suitable and level, and all braces, stairways, guardrails, stabilizers, castors and locking components are correctly secured before use. Do not move an occupied scaffold unless the system is specifically designed and approved for such movement.
stars About This Item
check_circle
Large Working Configuration: The 1.40 m × 2.0 m scaffold provides a practical working area for high-level construction and maintenance activities.
check_circle
14.30 m Platform Height: Provides an elevated working platform for high-level installation, maintenance, painting and construction work.
check_circle
15.30 m Overall Height: The assembled scaffold reaches an overall height of 15.30 m.
check_circle
16.30 m Reaching Height: Provides an approximate working reach of 16.30 m, depending on the user's height and working position.
construction Applications & Use Cases
- chevron_right High-rise building construction
- chevron_right High-level painting and plastering
- chevron_right Electrical installation
- chevron_right Ceiling and lighting work
- chevron_right Industrial maintenance
- chevron_right Warehouse and facility maintenance
- chevron_right Infrastructure projects
- chevron_right Repair and renovation work
- chevron_right High-level installation and access work
verified Key Product Benefits
- done 1.40 m wide × 2.0 m long configuration
- done 14.30 m platform height
- done 15.30 m overall height
- done 16.30 m reaching height
- done Lightweight aluminium construction
- done Integrated stairway access
- done Multiple working levels
- done Guardrail and toe-board protection
- done Cross-braced structure
- done Stabilizer-supported design
- done Mobile castors
- done Modular assembly and dismantling
- done Suitable for professional high-level applications
